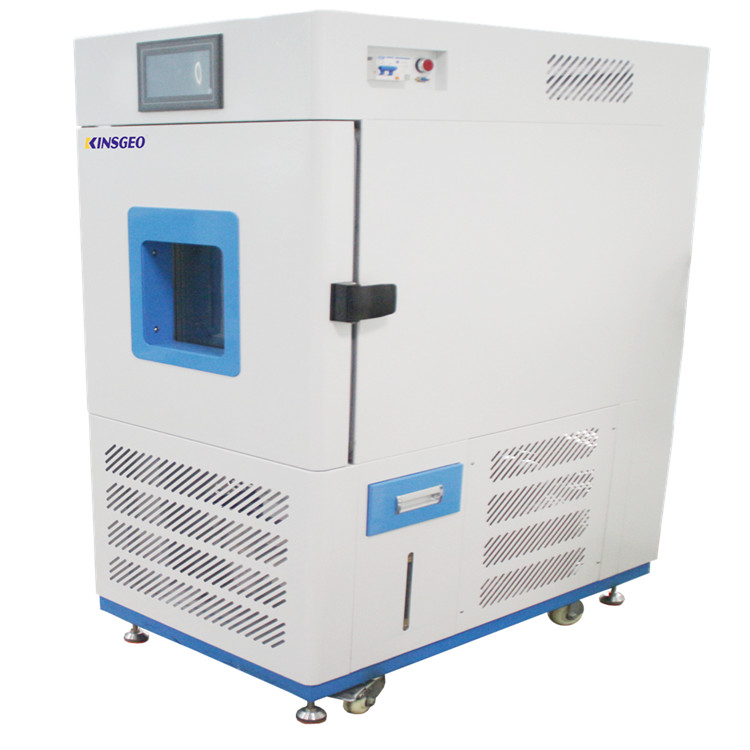

On Sales Laboratary Environment Testing Machine Inner Size
40×50×40cm Temperature And Humidity Test Chamber
Uses
This chamber can simulate different environment condition. It's
appropriate for testing material performance, such as resist heat,
resist dry,resist humidity and resist cold. That can define
performance of material.
Character
1.Use the high precision microcomputer touch temperature and
humidity controller with high stability of platinum resistance to
temperature and wind speed in the circulatory system of temperature
and humidity test.
2.control temperature&humidity well-distributed, precisely and
steady.
3. Completely independent system separate for testing in high
temperature, low temperature and constant temperature&humidity
environment.
1. Design Standard
| GB11158 | High Temperature Test Chamber Technical Condition |
| GB10589-89 | Low Temperature Test Chamber Technical Condition |
| GB10592-89 | High-low Temperature Test Chamber Technical Condition |
| GB/T10586-89 | Damp Heat Test Chamber Technical Condition |
| GB/T2423.1-2001 | Low Temperature Test Chamber Test Methods |
| GB/T2423.2-2001 | High Temperature Test Chamber Test Methods |
| GB/T2423.3-93 | Damp Heat Test Chamber Test Methods |
| GB/T2423.4-93 | Alternating Damp-Heat Test Methods |
| GB/T2423.22-2001 | Temperature Changing Test Methods |
| IEC60068-2-1.1990 | Low Temperature Test Chamber Test Methods |
| IEC60068-2-2.1974 | High Temperature Test Chamber Test Methods |
| GJB150.3 | High Temperature Test Methods |
| GJB150.4 | Low Temperature Test Methods |
| GJB150.9 | Damp Heat Test Methods |
Specifications:
| Model | KJ-2091B | KJ-2091C | KJ-2091D | KJ-2091E |
| Internal size cm | 40×50×40 | 50×50×60 | 70×70×85 | 100×80×100 |
| External size cm | 93×81×131 | 103×91×141 | 123×121×166 | 153×131×181 |
| Tempetature range, accurancy | -10,-20,-40,-60,-70～+150degree; ±0.1～± 0.3 |
| Humidity range, accurancy | 20％RH~98％RH； ±0.5％RH～±2.5％RH |
| Temp&humidity control | Korea TEMI880 |
| Circulatory System | the circulatory system of wind speed |
| Heating System | SUS#304, stainless steel heater |
| Humidifying System | Surface evaporation, a transparent structure. |
| Cooling system | Fan cooling mode, high efficiency of all sealed compressor |
| Water Supplying System | Automatic control and transparent structure, automatic recovery of
filtered water reuse. |
| Dehumidifying System | Freezing latent heat dehumidification mode. |
| Internal&external material | SUS#304 |
| Standard Allocations | shelves 2 groups, interior lights, anti-sweat&defogging device. |
| Power | AC220V/50, AC380/50Hz |
| Safety Devices | Leakage current, overload, compressor overload, over temperature,
ultra-wet, dry, humidification temperature protection. |
3.Company Information
Our factory Established in 2003, Dongguan Kejian Instrument Co.,
Ltd is a high-tech enterprise
which professionally research, develop and produce precise testing
instruments and provide a full set of testing solution.
4.Attend the fair
We attend international exhibitions three to five times every year,
and domestic exhibitions five to ten times every year, We hope to
have the opportunity to invite you to visit our booth in future.
5.Certifications and letters patent
6.Packaging & Delivery
Packaging Details:Disposable Plastic Apron PE Film Making Machine
uses international standard package, big wooden cases
Delivery Time: 10-20 days after received deposit
7.Our services
1). Warranty time: All machines are guaranteed for one year free that we provide spare components except the wrong operation or
damaged by people on purpose.
2).Teaching services: Our engineers will teach your staff to operate the machine during
the period of installation and commissioning, and they will not
leave until your staff can operate it properly and normally when it
necessary.
3).Certificate services: Complying with our clients' request, we can provide related
certificates to clients freely
4).Maintenance services: If you have any questions or any malfunction happened,we will
reply you within 48 hours .
