PE PVC Plastic Water-based Glue Samples Printing Coating Machine

1.Product Description

1.1 This production line is suitable for producing coating of PET, BOPP, PP, paper, etc. (suitable for scraping, etc.)

1.2 Mainly use raw materials

1.2.1 Substrate: PET, BOPP, PP, paper, etc

1.2.2 Glue: oily and water-based glue, etc

2. Coating machine production line performance and technical parameters

2.1 Coating machine substrate width 250mm

2.2 Maximum external diameter of winding 200mm

2.3 Maximum external diameter of winding 200mm

2.4 Diameter of unwinding mandrel, 3"

2.5 Coil mandrel size 3"

2.6 Coating uniformity dry adhesive ≤ 0.0025mm

2.7 Coiling edge uniformity end face alignment error ≤3mm

2.8 Production speed 0.5-10m/min

2.9 Machine speed 10m/min

2.10 Heating and drying mode electric heating (tunnel type hot air drying) ladder heating mode (low-high-low distribution)

Maximum adjustment temperature: 180℃

Power 3 2.11, 380 v, 50 hz

2.12 Compressed air source 6-8kg/cm2

2.13 Three-phase alternating current of heat source

2.14 Flat and straight layout of oven

3. Details of main equipment

3.1 The production line supports the body and accessories type 1

3.2 Single working position feeding machine 1

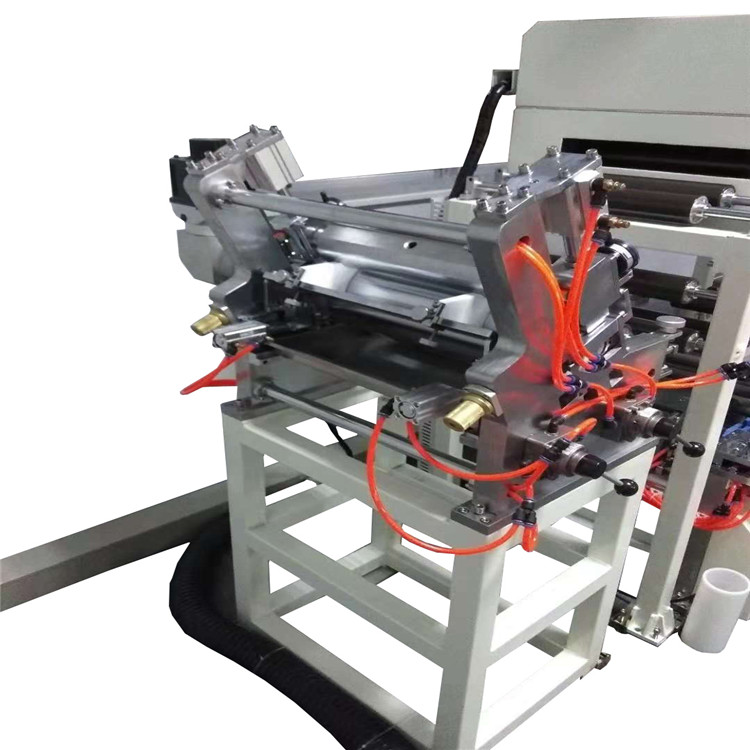

3.3 One straight scraping coating head

3.4 Oven (0.7m/section) 3 sections

3.5 Compound mechanism 1

3.6 One laminating feeding machine

3.7 One single shaft winding machine

3.8 Electronic control system type 1

3.9 Piping project type 1

3.10 Wiring engineering type 1

3.11 Piping engineering type 1

3.12 Transmission system type 1

Main specification:

2.Product Design Standard

ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7, GB/T 453, ASTM E4, ASTM D1876, ASTM F2256, EN1719, EN 1939, ISO 11339, ISO 36, EN 1465, ISO 13007, ISO 4587, ASTM C663, ASTM D1335, ASTM D5733, ASTM D2261, ASTM F2458, EN 1465, ISO 2411, ISO 4587, ISO/TS 11405, ASTM D5034, ASTM D4632.

3.Company Information

Our factory Established in 2003, Dongguan Kejian Instrument Co., Ltd is a high-tech enterprise
which professionally research, develop and produce precise testing instruments and provide a full set of testing solution.

4.Attend the fair

We attend international exhibitions three to five times every year, and domestic exhibitions five to ten times every year, We hope to have the opportunity to invite you to visit our booth in future.

5.Certifications and letters patent

7.Our services

1). Warranty time: All machines are guaranteed for one year free that we provide spare components except the wrong operation or damaged by people on purpose.

2).Teaching services: Our engineers will teach your staff to operate the machine during the period of installation and commissioning, and they will not leave until your staff can operate it properly and normally when it necessary.

3).Certificate services: Complying with our clients' request, we can provide related certificates to clients freely

4).Maintenance services: If you have any questions or any malfunction happened,we will reply you within 48 hours .
