Continuous Hot Melt Adhesive Printing Coating Testing Machines

Usage

KJ-6018 continuous hot melt adhesive coating and laminating machine is a laboratory mini-type hot melt adhesive coating and laminating machine which can be manufactured in small quantities and assembled by the mechanism of high precision modular coating station.Hot melt pressure sensitive adhesive can be directly coated on heat resistant substrate, or coated on the release paper and then the adhesive film to paste on different surface materials, such as paper, plastic model metal film, etc. (the best experimental substrate recommended to use 50 micron high temperature PET film).

Performance characteristics

· High precision modular coating station structure assembly.

· The maximum operating temperature is 200℃

· Independent pt-100 high-precision PID temperature control mode for the upper rubber wheel and rubber groove

· Use the micrometer as the dividing head to precisely adjust the coating gap between the upper and lower rubber wheels to control the coating thickness.The maximum coating gap is 500 microns (substrate thickness), and the optimum coating thickness is ≥20 microns (coating accuracy is ±5 microns).After the thickness setting, the rubber wheel can be indirectly locked to prevent the gap from changing.

· The maximum width of the coil is 200mm (the maximum width of the sheet is 260mm) and the maximum coating width is 160mm.The coating width is adjusted by two Teflon baffles in the glue tank.Unlimited length of adhesive coating, automatic winding.

· CVT, maximum coating speed: 4.5m/min (optimal coating speed is 1-2m/min)

· Release reel can adjust knob to change tension release.

· The material receiving reel can adjust the mechanical tension control.

· Heating rod, rubber wheel and rubber groove can be quickly removed from the body to remove residual glue.

· Machine size: 1150 * 518 (including 720 motors) * 658 mm (length * width * height)

· Machine weight: about 120 kg

· Power supply: AC 220v (single-phase)/50Hz

· Machine power: 1050w

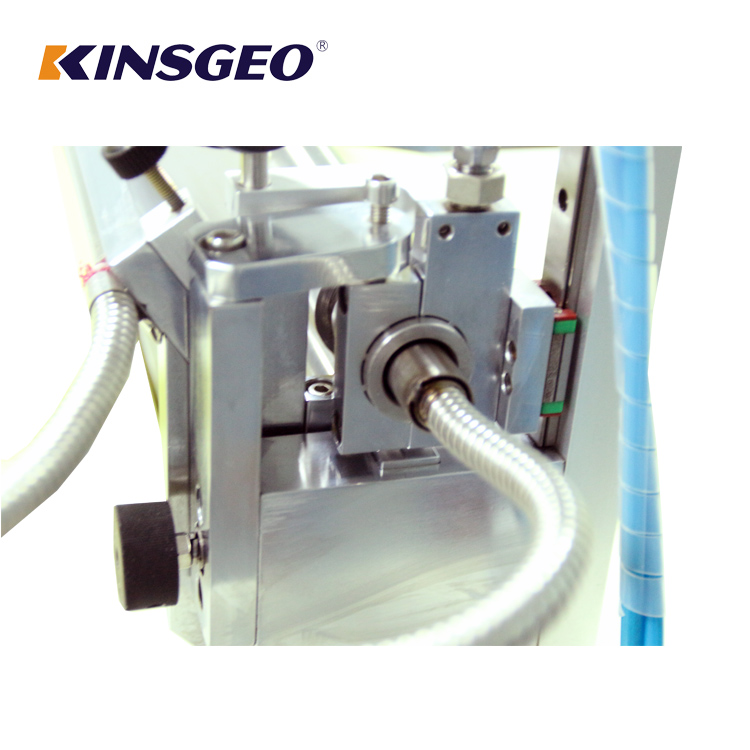

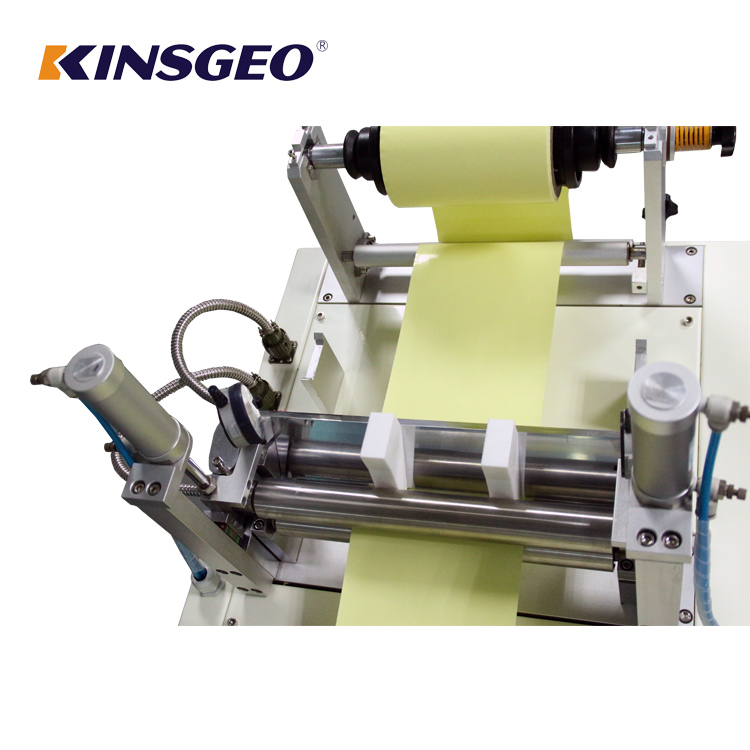

Pictures

About US

1)Customer inquiry process:

Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.

2)Specifications customize process:

Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.

3)Order process:

We offer below business term:

4)Production and delivery process:

We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.
After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products in confirmed shipping time and inform customer.

      GUANGDONG KEJIAN INSTRUMENT CO.,LTD was established in 2003, is a professional research and development the production of hign precision equipment and provide testing solutions for high-tech enterprises. KEJIAN professional technical team and sophisticated production and management level, continues to provide customers with satisfactory products and services, so as to gradually become the industry's leading suppliers of testing machines.

    In order to make the customer experience more satisfaction with technical support and service, KEJIAN began to construct a nationwide sales and service network, established the Jiangsu Kunshan branch Office CHANGSHA office ,Chongqing and Xiamen office build sales, technical and after-sales service team, provides more timely, professional support and services for customers.

       Follow the market trends of globalization, KEJIAN INSTRUMENT register wholly owned subsidiry- KEJIAN INSDUSTRIAL (HONGKONG）CO.,LTD. started to explore the international market, To provide testing instruments for foreign customers. So far, KEJIAN INSTRUMENT provide quality products and services over 50 national and regional customers, which several customers trust and become a long-term partner with KEJIAN.

       Based on the recognition of KEJIAN INSTRUMENT, invited to participate in a number of national standards by the national standards drafting committee drafting and revision process, and has been invited to attend the adhesive industry forum, spare no effort to contribute to national and industry technology development.
