0.1s 0.1C Electronic Rubber Testing Machine ISO Melt Flow Index Measurement

Ask Lasest Price
Brand Name :	Kejian Kinsgeo
Model Number :	KJ-3092
Certification :	ISO,CE and etc
Price :	Negotiate
Payment Terms :	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability :	100 Sets per Month
Delivery Time :	in stock,5-10 working days after order confirmed

Add to Cart

Product Details
Company Profile

0.1s 0.1C Electronic Rubber Testing Machine ISO Melt Flow Index Measurement

0.1s 0.1℃ Melt Flow Index Measurement Electronic Rubber MFI Testing Instrument Machine

Discription:

KJ-3092 melt flow rate testing instrument can be used for ABS, polystyrene, polyethylene, polypropylene, polyamide, fiber resin, acrylate, POM, fluorine plastic, polycarbonate and other plastic materials, the melt flow rate (MFR) or the melt volume flow rate (MVR) to be determined.

Standard:

GB/T3682-2000,ISO1133-97, ASTM1238

Technical parameter:

Model	KJ-3092
Barrel parameters	Inner hole 9.55±0.025mm
Pistons parameters	Piston head: 9.475±0.015mm
Piston length	H=6.35±0.1mm
Paramters	Extrusion hole 1=2.095±0.005mm
Temperature parameter	With intelligent temperature control instrument, with four pairs of significant temperature setting control, PID parameters can be automatically set, precision up to ± 0.1 degree centigrade
Temperature range	80degree centigrade~400degree centigrade
Temperature accuracy	±0.2 degree centigrade
Display resolution	0.1degree centigrade
Maximum comsuption	< 600W
Temperature recovery time	less 4 min.
Weight parameters are as follows:
Weight accuracy	±0.5%
Basic configuration	A 0.325kg (including binder bar)
	B 1.2㎏,
	C 2.16㎏
	D 3.8㎏
	E 5.0㎏
	F 10kg
	G 12.5㎏
	H 21.6kg
Position detection
Loop distance from up and down	30mm
Control precision	± 0.1mm
Test flow control
Times of cutting the material	0~10 times
Material cutting interval	0~999s(set reference Table 2)
Control flow reaches the set temperature without volatility
Barrel temperature time	15 min.
Material be installed	1 min.
Material sample temperature recovery time	4 min.
When binder set	1min

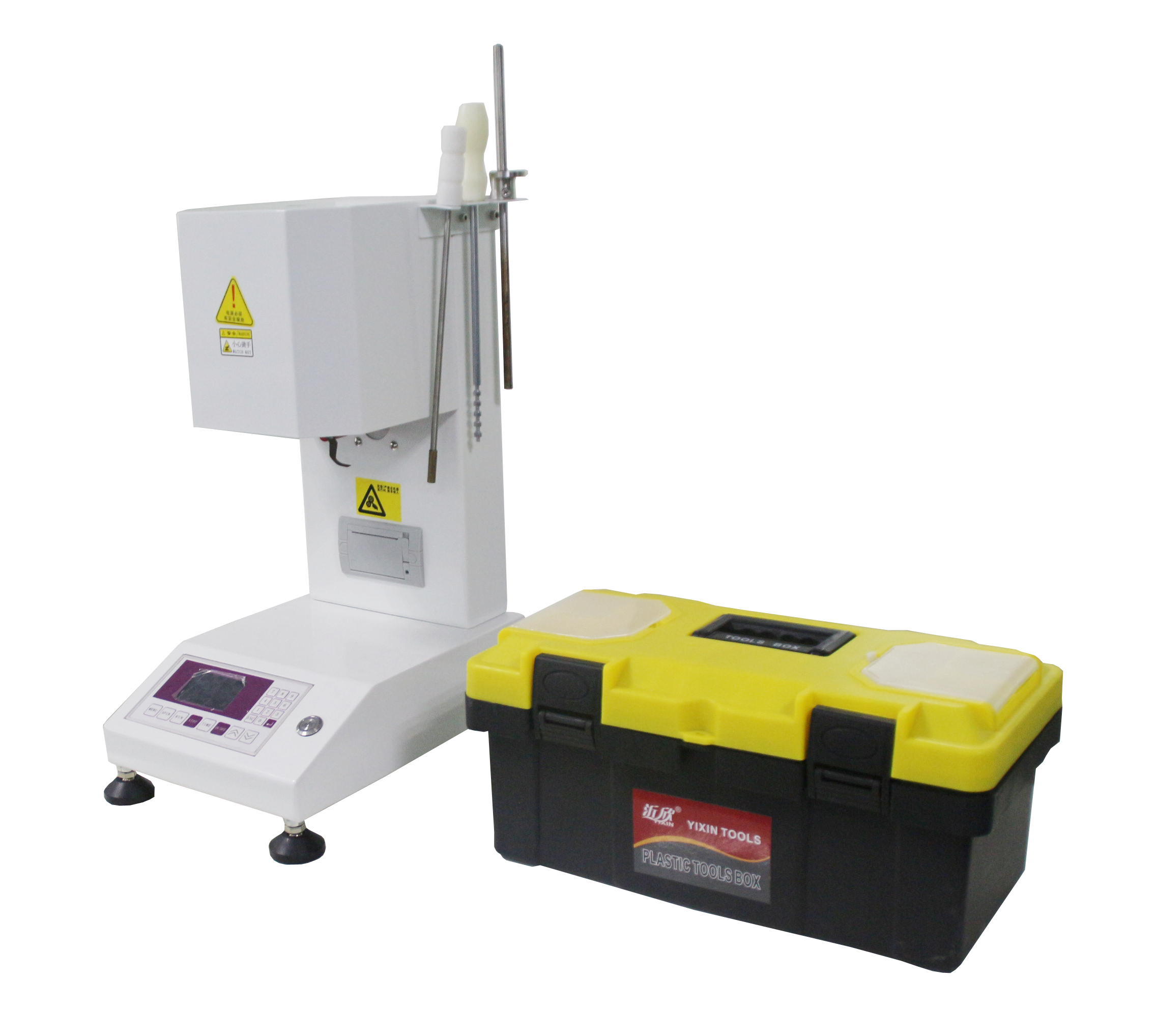

Pictures:

KeJian Instrument Service:

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.

Onsite Service:
1.Device installation 2.Equipment Operation Test Technology training 3. Equipment Calibration 4.Daily maintenance and maintenance of equipment
Free technical training for visiting factories 24-hour Online contact
Free software upgrades
Free information:
1.Product Instruction;2.Product operation instruction/video;3.Experiment Test (test application, test report)
Device Problem Handling:
1. Social media 24 hours online communication;2. Mail Seamless Docking;3. Video Conferencing;4. Artificial free door-to-door service
