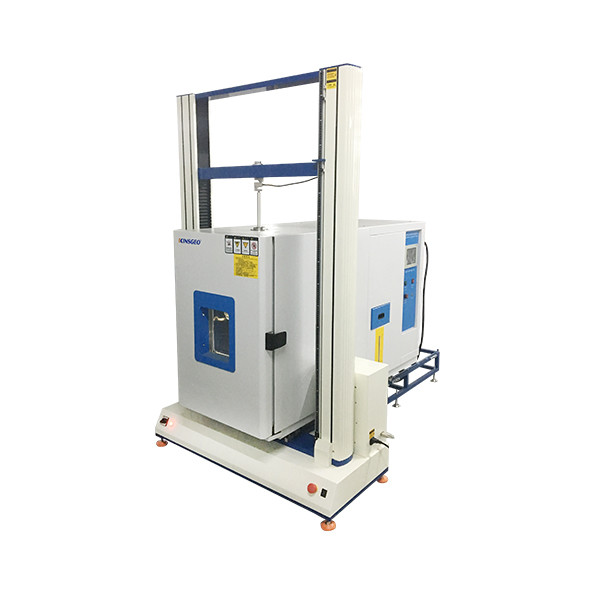

Constant Temperature Humidity Peel Strength Tester High-Low
Temperature Test Chamber With Universal Testing Machine
Standard
GB10586-89 Technical conditions of low-temperature test chamber
GB/T7750-1987 Test method for tensile shear creep properties of
adhesives
GB2423.1-89 Basic environmental test procedures for electrical and
electronic products Test A: low-temperature test method
GB2423.2-89 Basic environmental test procedures for electrical and
electronic products Test B: high-temperature test method
GJB150.3-86 Environmental test methods for military equipment
High-temperature test
Feature
1. The machine structure adopts advanced baking paint treatment and
is equipped with high precision, low resistance, no clearance
double ball screw and guide column, so that the loading efficiency
and structural hardness are increased.
2. The control system adopts Panasonic AC servo motor, which
ensures the rotational system has characteristics of high
efficiency, stable transmission, low noise and precise speed
control.
3. The microcomputer system uses the commercial computer as the
main control machine. It can complete all the test parameters
setting, working state control, data acquisition, processing
analysis, result display and print output with our specialized test
software.
4. The high-low temperature test chamber adopts bistratal adiabatic
glass door for the convenience of observe testing condition. It
adopts whole stainless steel frame and liner. It is not only
beautiful, but also has strong resistance to corrosion.
5. The structure of instrument is reasonable. It can be used to
test separately or combinedly. It can be separated into Constant
Humidity&Temp. Tester and Peel Strength Tester.
Technical Parameter
| Technical parameter for Tensile Testing Machine |
| Capacity | 5, 10, 50, 100, 200, 500, 1000, 2000, 5000kg |
| Degree of load decomposition | 1/25,000 |
| Load accuracy | 0.5% |
| Testing speed | 0.5～500mm/min |
| Power system | Panasonic AC servo motor and driver |
| Software feature | Unit selection: g, kg, N, KN, LB |
| Technical parameter for High-low Temperature Control System |
| Model | High-low temperature type |
| Range of temperature control | Customized |
| Range of humidity | 20%RH～98%RH |
| Control stability | ±2.5%RH, 1℃ |
| Distribution uniformity | ±3%RH, ±1℃ |
| Control of temperature and humidity | Korean TIMI880 programmable touch screen controller |
| Size of inner box | 40×40×70cm(customized) |
| Power | 1φ, AC220V/50Hz |
KeJian Instrument Service:
If you face any problems in future during testing process we
promise we will give you a reply within 48 hours and solution
provide within 3 working days. We can offer operation video and
English operation muanual. We can provide video-con.
Onsite Service:
1. Device installation 2. Equipment Operation Test Technology
training 3. Equipment Calibration 4. Daily maintenance and
maintenance of equipment
Free technical training for visiting factories 24-hour Online
contact
Free software upgrades
Free information:
1. Product Instruction; 2. Product operation instruction/video; 3.
Experiment Test (test application, test report)
Device Problem Handling:
1. Social media 24 hours online communication; 2. Mail Seamless
Docking; 3. Video Conferencing; 4. Artificial free door-to-door
service
