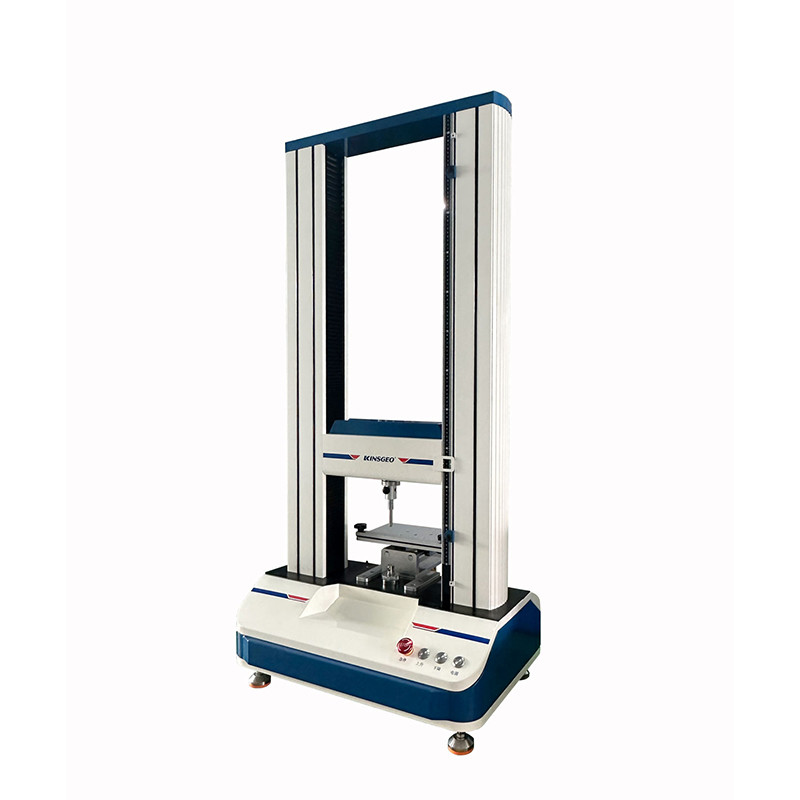

ASTM Universal Electronic Tensile Testing Machine 5000N Bending Force Testing Machine Free Fixture
Uses
This machine also known as a materials testing machine , is applicable to testing tensile, compression,bending,peel, shearing force, peeling force, modulus of elasticity,and elongation of materials, components, and finished product for metal, plastic, rubber, textile, synthetic chemicals, wire and cable,leather,package,tape,film,solar cell,etc.
Character
1. The structure is made of the paint-coated aluminium blanking plate. The interior is used the high-accuracy,low-resistance and zero clearance of two ball screw and oriented pole which improve loading efficient and structure rigidity.
2. Use servo motor which ensure high efficiency,steady transmission and low noise. The accuracy of speed can be control in 0.5%.
3. That using the business computer as the main control machine plus the special testing software of our company can conduct all of testing parameter, work state, collecting data&analysis, result display and printing output.
Accessories
1.Suitable Grips that meet customer sample need.
2.Software for test control,data acquisition and report.
3.English operation teach video.
4.Table computer is select.
5.Extend meter as customer request.
Software functions
1. Use windows working platform, set all parameter with dialog forms and operate easy;
2. Using a single screen operation, do not need to change the screen;
3. Have simplified Chinese, traditional Chinese and English three languages,switch conveniently;
4. Plan test sheet mode freely;
5. Test data can be directly appeared in the screen;
6. Compare multiple curve data through translation or contrast ways;
7.With many units of measurement, the metric system and british system can switch;
8.Have automatic calibration function;
9.Have user-defined test method function
10.Have test data arithmetic analysis function
11. Have the function of automatic magnification, to achieve the most appropriate size of graphics;
Specification
| Design Standards | GB16491-2008,HGT 3844-2008 QBT 11130-1991,GB 13022-1991,HGT 3849-2008,GB 6349-1986 GB/T 1040.2-2006 2411,ISO 4587,ISO/TS 11405,ASTM E4,BS 1610,DIN 51221,ISO 7500,EN 10002,ISO 527,ASTM D628,ASTM,D5459,ASTM D5458,ASTM D5748,ASTM D-882,ASTM D 1922,ASTM D638,ASTM D412. |
| Model | KJ-1066A |
| Range of speed | 0.5-1000mm/min |
| Motor | Japan Servo Motor |
| Capacity choice | 5,10,20,50,100,200,500,1000,2000,5000KG optional |
| Resolution | 1/250,000 |
| Effective testing space | 400mm MAX |
| Accuracy | ±0.5% |
| Operation method | Windows XP,Win7 operation,computer control |
| Accessories | computer, printer, system operation manual |
| Optional accessories | customized clamps by appointed, force sensors, , printer, and operation manual |
| Weight | 400KG |
| Dimention | (W×D×H)80×50×150CM |
| Power | 1PH, AC220V, 50/60Hz |
| Stroke protection | Upper and lower protection, prevent over preset |
| Force protection | system setting |
| Emergency stop device | Handling emergencies |
