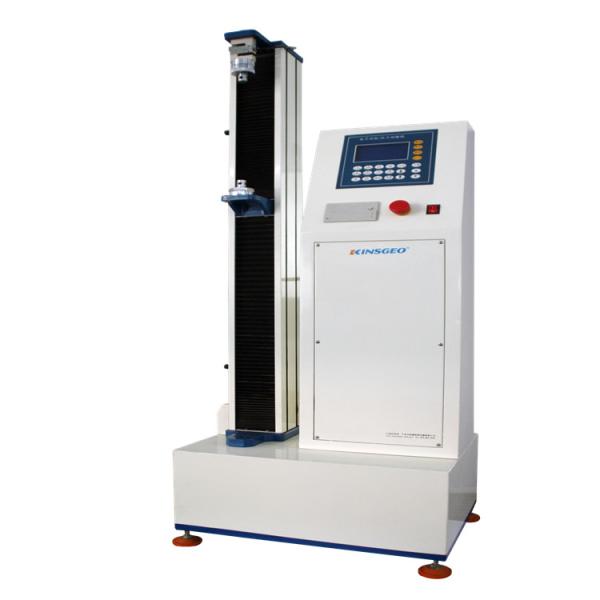

1 Ton Electronic Floor Type PC Control Universal Testing Machine
Price
Standard:
ASTM D903,GB/T2790/2791/2792,CNS11888,JIS-K6854,PSTC7
Uses:
Electronic Universal Testing Machine is used to test tensile, peeling, shearing for textile, rubber,
plastic, synthetic leather, tape, electron and metal,etc, to
determine the product or semi-product quality.
Character:
1. The appearance uses cold drawing static spraying maps,Concise
and easy,multifunction.
2. Figure liquid display,can distinguish the tension or
pression,easy to read.Three kind unit:N-Kgf-Lbf,can interchange ；
3. You can read the peak value from the tension and pression
direction,and zero clearing aumotically and handle.
4. Halt overload funtion.
5. Floor type with beautiful structure.
Specifications:
| Capacity choice | 500 (10,20,50,100,200,500)KG Optional |
Unit | Kg,lb,N |
Accuracy | ±1% or better |
Motor | ACMotor+Transducer |
Resolution | 1/50,000 |
Test speed | 50~500 mm/min(100,200,300,400,500)Stepless speed and adjustable |
Power | AC 220V,Single phase |
Test Stroke | 1200mm |
Dimension | 600x450x1800mm(length*width*height) |
Display Panal | load cell+KJ-2006displayer |
Protection | Leakage protection,Over-load protection,Emergency stop,Upper and
lower limit device. |
Software Functions:
1. Use windows working platform, set all parameter with dialog
forms and operate easy;
2. Using a single screen operation, do not need to change the
screen;
3. Have simplified Chinese, traditional Chinese and English three
languages,switch conveniently;
4. Plan test sheet mode freely;
5. Test data can be directly appeared in the screen;
6. Compare multiple curve data through translation or contrast
ways;
6. With many units of measurement, the metric system and british
system can switch;
7. Have automatic calibration function;
8. Have user-defined test method function
9. Have test data arithmetic analysis function
11. Have the function of automatic magnification, to achieve the
most appropriate size of graphics;
12. Can test tensile, compression, peel, fatigue and so on.
RFQ:
Why choose us?
1. Considerate Service Different countries plugs, manually change
the-voltage from 110V to 220V, insurance indicator.
2. Excellent after sale service:
1 YEAR warranty. If you have any problems during testing process,
we promise we will give you a reply with 24 hours and solution
provide within 3 working days. What you need to do is to send us
the controller.
3. Good Packaging:
Covered with air bubble film before put the machine into the wooden
case, which not only has good shock absorption, impact resistance,
heat sealing and also has the advantages of nontoxic, odorless,
moisture corrosion, good transparency etc.
Pictures:
