Microcomputer Control Liquid Screen Operating Tape Peel Adhesion
Test Equipment For Loop Tack Resistance with 18Kg
Uses:
Peel Adhesion Test Equipment is used to do the loop tack test of
kinds of adhesive,tape,can meet FINAT (FINAT Test Method No.
9:measurement),ASTM D6195,PSTC 16 test standards.
Work Theory:
The loop tack specimen with touch with standard glass plate with
constant speed 300mm/min,then the loop tack specimen will separate
from test plate with 300mm/min,it will have a max force,this force
is the loop tack force.
Character:
1. Menu interface and PVC operation panel
2. Microcomputer control, the liquid screen operating system
3. Compact structure, exquisite, humanized structure design
4. Sensing system adopts the world famous imported components,
stable and reliable performance
5. According to maximum, minimum, average
6. The micro printer, print test results at any time
7. Humanized fixture, adhesion can be arbitrarily altered substrate
8. Standard RS232 interface, convenient external connection and
data transmission system with computer
Specification:
| Measure range | 20N 300N (can choose one) |
| Measure accuracy | 1 level |
| Test speed | 300mm/min( 1-500mm/min,adjustable) |
| Specimen size | L(180.0mm)×W(25.0mm) |
| Test plate size | L(30.0mm)×W(25.0mm)×T(3.0mm) |
| Machine size | H:46cm；W:30cm；D:38cm |
| Weight | 18Kg |
| Power | 220V/110V,50HZ/60HZ |
RFQ:
Why choose us?
1. Considerate Service Different countries plugs, manually change
the-voltage from 110V to 220V, insurance indicator.
2. Excellent after sale service:
1 YEAR warranty. If you have any problems during testing process,
we promise we will give you a reply with 24 hours and solution
provide within 3 working days. What you need to do is to send us
the controller.
3. Good Packaging:
Covered with air bubble film before put the machine into the wooden
case, which not only has good shock absorption, impact resistance,
heat sealing and also has the advantages of nontoxic, odorless,
moisture corrosion, good transparency etc.

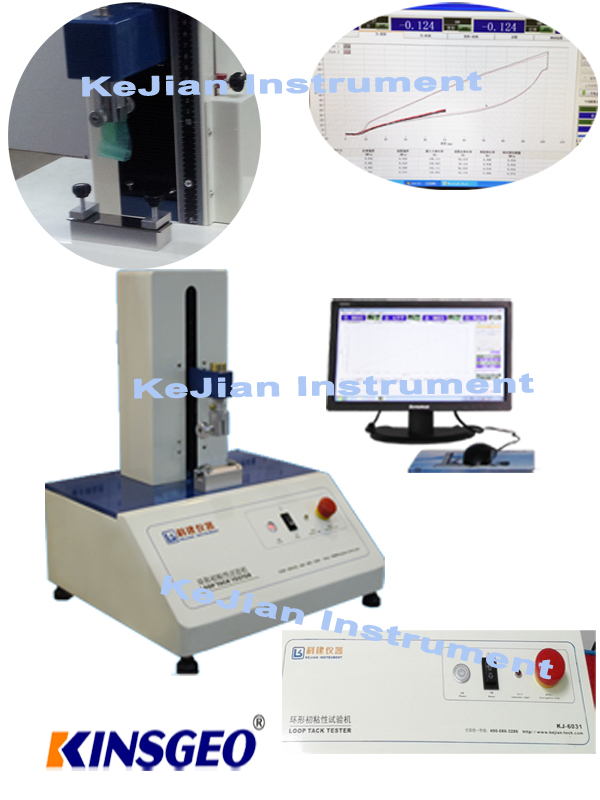

Pictures:
