Automatic Computer
Control Single Phase Furniture Testing Machines , Sofa Durability Testing
Equipment
Design Standard: GBT 26706-2011(Brown mattress standard);QB1952.2-2011(Soft
mattress standard).
Use:

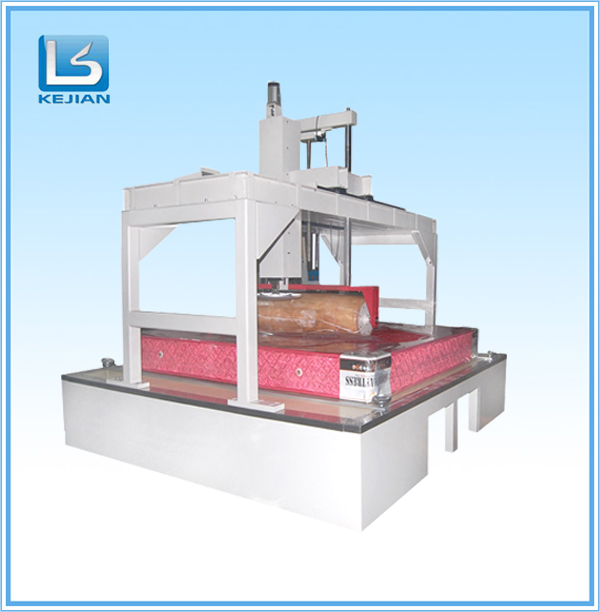

mattress durability testing equipment is used to test durability of
sofa matress.Test methods:Fastern the matress well,open the
machine,set the specification on the touched screen,manual
operiation or automatic operation,the machine will work as
parameters,test result will output by printer.
Characteristics:
1. mattress durability testing equipment has two model,manual
operation and automatic operation,user can choose automatic
operation(a key control to make all automatic operation) and manual
operation,it makes the test data more accurate and reduces test
work load.
2.Appearance of machine is beautiful and elegant,all wires are
hidden,in case of leakage of electricity and danger of power
system.
3.Roller loading is free loading by Linear sliding bearing,it only
exists linear bearings rolling friction(friction
coefficient:0.002),make sure the accuracy of force.
4.Dragon gate type mechanical structure,high accuracy of servo
motor,low noise of ball screw,high accuracy and heavy load linear
guide is used as driving medium,improves mechanical strength and
rigidity of machine,prolonging life and improving accuracy of test
data,reduce the noise effectively.Use 7 inch LCD touched screen to
control machine,make it more hommization.
5. mattress durability testing equipment Choose suitable file
layout to print out report,increase test report more dependable.
6.I/O monitoring function:Monitoring any problems of machine when
machine in operation,buzzing,alarm and textual description can show
the reason of problem.
Specification:
| Model | KJ-9188 |
| Control Method | PLC+Touched screen |
| Display | Liquid |
| Operation | Manual+Automatic |
| Data output | printer |
| Force device | Imported Servo motor |
| Power | AC~220V 50HZ,1 phase,2KW(Max) |
| Volume | 2480(L)x2280(W)x2310(H)(Max.)(mm) |
| Accuracy | Position,±0.2mm, Size,±0.1mm, Force ,±/-0.5% |
| Weight | About 1300kg |
| Operation indicator | Red Light-machine fault,Yellow Light-operation stop,Green
Light-machine in operation |
| Fault warning | buzzer |
RFQ:
Why choose us?
1. Considerate Service Different countries plugs, manually change
the-voltage from 110V to 220V, insurance indicator.
2. Excellent after sale service:
1 YEAR warranty. If you have any problems during testing process,
we promise we will give you a reply with 24 hours and solution
provide within 3 working days. What you need to do is to send us
the controller.
3. Good Packaging:
Covered with air bubble film before put the machine into the wooden
case, which not only has good shock absorption, impact resistance,
heat sealing and also has the advantages of nontoxic, odorless,
moisture corrosion, good transparency etc.
Pictures:
