    English Optional Environmental Test Chambers Sand And Dust Test Chamber With Touch Screen PLC

    Ask Lasest Price
    Brand Name : Kejian Kinsgeo
    Model Number : KJ-9028
    Certification : ISO,CE and etc
    Price : Negotiate
    Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
    Supply Ability : 100 Sets per Month
    Delivery Time : Standard size in stock,3-7 working days after order confirmed
    • Product Details
    • Company Profile

    English Optional Environmental Test Chambers Sand And Dust Test Chamber With Touch Screen PLC


    English Optional Environmental Test Chambers Custom Sand and Dust Test Chamber with touch screen PLC


    Product Description:


    Sand and dust test chamber to commonly known dust box, Shachen box;
    Dust chambers having a wide temperature adjustment control range;
    Dust test chamber inside and outside the box made ​​of SUS304 stainless steel plate, overall nice shape;
    Dust test chamber equipped with a sight glass door for easy observation experiments the cabinets are testing samples of state;
    The sand and dust test chamber using imported intelligent temperature controller (Moeller) temperature control, direct digital temperature display.


    Uses:


    Dust test chamber is a simulation of the climate and environment of the dust samples dust test and sand test chamber; suitable for Electronic and Electrical Products IPX5 simulation test (shell dust test)

    Satisfy the standard:
    The sand and dust test chamber to meet the Mil-Std-810,the national standard GB4208-2008, IEC60529-2001 "enclosure protection (IP code);
    GB/T2423.37-2006, IEC60068-2-68: 1994 "Basic environmental testing for electric and electronic products Part 2 Test L: Dust and sand."
    The rotating electrical overall structure protection (IP code) in GB/T4942.1 classification;
    The GB-T4942.2 low-voltage electrical enclosure protection class;
    GB10485 "car and trailer exterior lighting device basic environmental testing;
    GB2423.37 sand and dust test method;
    GB7001 the shell lamps Protection class classification criteria.


    Specifications:


    Internal size: (D*W*H)

    500*600*500mm 800*800*800mm
    Metal screen nominal wire diameter50μm;
    Nominal spacing between lines75μm
    Sand dust dosage2kg~4kg/m³
    Test dustDry talc, Portland cement, tobacco through gray
    Airflow speed≤2.5m/S
    Vibration time0~9999min adjustable
    Fan cycle time0~9999min adjustable
    MaterialInternalMirror SUS304 stainless steel
    ExternalA3 steel sheet electrostatic painting
    Observation windowSUS304 High quality stainless steel

    Meet the test method


    GB4208-2008,IEC60529-2001

    GB/T2423.37-2006,IEC60068-2-68:1994.

    GB/T4942.1Rotating machine of the whole structure of the protection level (IP code) classification;

    GB-T4942.2Low voltage electrical shell protection level;

    GB10485;

    GB2423.37Sand dust test method;

    GB7001Lamps and lanterns shell protection level classification criteria.

    Mil-Std-810

    UsesDust test chamber is simulated have dust climate environment on sample was dust test and the test experiment box; Suitable for electronic electrician product IPX5, 6 simulation test (shell dust test)
    Power220V/1.5KW/50HZ

    Product structure description:


    Housing structure: mainly by studio, frame, carton, the door of the oven and heat insulation filling materials, heating system, control circuit system, control execution system, auxiliary components composition (vacuum pump, etc.),

    Studio material: mirror SUS304 stainless steel;

    Carton material: surface atomization SUS304 stainless steel;

    The door of the oven: 1000 * 1000 * 80 mm, toughened glass Mosaic central as observation window, size: 500 * 500 mm; The material and main body use SUS304 materials, intermediate using polystyrene foam forming, strong, heat insulation,

    The body heat insulation filling material: polystyrene foam forming;

    Control circuit system mainly used material: schneider communication relay, chengtai leakage air switch, JinLongYu electric wire electric cable;

    To control execution system: adopting imported touch programming liquid crystal display TEMP880 controller (attach controller detailed introduction);

    Heating system: U type electric heat pipe, stainless steel material, power: 2 kw;

    Vacuum executive SAP thing: vacuum pump gas flow: 0 ~ 6 l/min, 0 ~ 2 kpa; Vacuum gauge, air filter, centrifugal blower, etc.; Vibration device: eccentric wheel motor;

    Test lead hole: a diameter of 50 mm, inside and outside the airtight cover;

    Safety device: leakage power-off protection, overload fuse protection, fan overheating protection;

    Work indoor power socket: one, the dust can be divided into socket.


    Others:


    1. 5.7 inch truecolor touch BoBing;

    2. Two kinds of control mode: fixed value/program;

    3. Sensor types: PT100;

    4. Output mode: PID control output / 4-20 ma analog output (1-5 v) / (0-10 v can be arbitrary choice);

    5. Control output signal: a. 8 way switch auxiliary control signal (IS, T, AL control signal); B. with standard 10 switch signal relay output (optional 20 relay output);

    6. Temperature measurement range: 90.00 ℃, 200.00 ℃, 90.00 ℃, 300.00 ℃, can choose any)

    Error + / - 0.2 ℃;

    7. Special functions: blow dust, vibration, vacuum;

    8. Communication interface (RS232C/RS485 communication, the longest distance of 1.2 km [fiber can reach 30 km];

    9. Interface language types: Chinese/English.

    10. The program editor: programmable 120 program, each program maximum programmable 99 section, a total of 1200 segments of;

    11. The product show clear intuitive, the programmable control system convenient operation and stable performance, work more efficient;

    12. Outlook size: 184 x 144 x 94 (mm) (LWH);

    13. Installation open hole size: 173 x 133 (mm) (long x width);


    Excellent after sale service:


    1 YEAR warranty. If you have any problems during testing process, we promise we will give you a reply with 24 hours and solution provide within 3 working days. What you need to do is to send us the controller.


    Pictures:

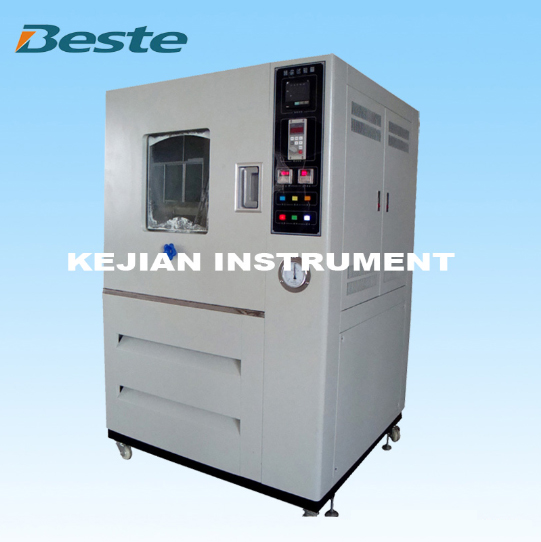

    Quality English Optional Environmental Test Chambers Sand And Dust Test Chamber With Touch Screen PLC for sale
