    250*350*510(L*W*H) Size Melt Flow Index Measurement , Electronic Plastic Testing Instrument

    Ask Lasest Price
    Brand Name : Kejian Kinsgeo
    Model Number : KJ-3092
    Certification : ISO,CE and etc
    Price : Negotiate
    Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
    Supply Ability : 100 Sets per Month
    Delivery Time : in stock,5-10 working days after order confirmed
    • Product Details
    • Company Profile

    250*350*510(L*W*H) Size Melt Flow Index Measurement , Electronic Plastic Testing Instrument


    250*350*510(L*W*H) Size Melt Flow Index Measurement , Electronic Plastic Testing Instrument


    Discription:


    KJ-3092 melt flow rate testing instrument can be used for ABS, polystyrene, polyethylene, polypropylene, polyamide, fiber resin, acrylate, POM, fluorine plastic, polycarbonate and other plastic materials, the melt flow rate (MFR) or the melt volume flow rate (MVR) to be determined.


    Standard:


    GB/T3682-2000,ISO1133-97, ASTM1238


    Technical parameter:


    ModelKJ-3092
    Barrel parametersInner hole 9.55±0.025mm
    Pistons parametersPiston head: 9.475±0.015mm
    Piston lengthH=6.35±0.1mm
    ParamtersExtrusion hole 1=2.095±0.005mm
    Temperature parameterWith intelligent temperature control instrument, with four pairs of significant temperature setting control, PID parameters can be automatically set, precision up to ± 0.1 degree centigrade
    Temperature range80degree centigrade~400degree centigrade
    Temperature accuracy±0.2 degree centigrade
    Display resolution0.1degree centigrade
    Maximum comsuption< 600W
    Temperature recovery timeless 4 min.
    Weight parameters are as follows:
    Weight accuracy±0.5%
    Basic configurationA 0.325kg (including binder bar)
    B 1.2㎏,
    C 2.16㎏
    D 3.8㎏
    E 5.0㎏
    F 10kg
    G 12.5㎏
    H 21.6kg
    Position detection
    Loop distance from up and down30mm
    Control precision± 0.1mm
    Test flow control
    Times of cutting the material0~10 times
    Material cutting interval0~999s(set reference Table 2)
    Control flow reaches the set temperature without volatility
    Barrel temperature time15 min.
    Material be installed1 min.
    Material sample temperature recovery time4 min.
    When binder set1min

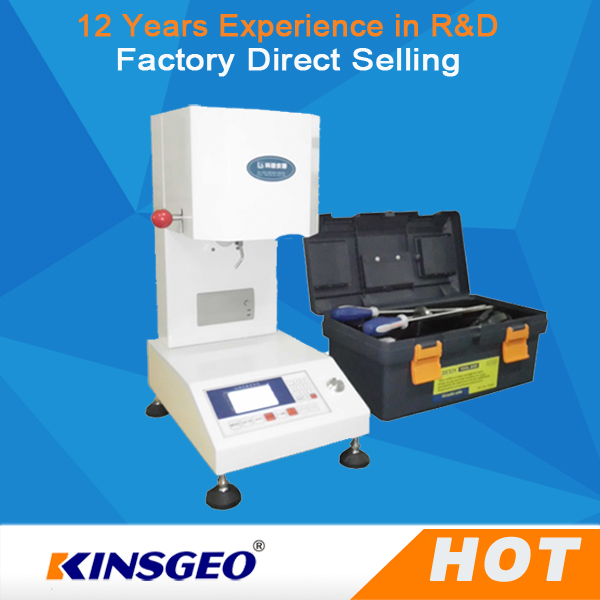

    Pictures:
