3-5 Minutes 220v, 50/60Hz Ink Mixing Machine With Adjustable
Distributing Time 250w
Uses:
The Printing Ink Proofer is designed to test the special color
before printed in printing machine. The color matching work is
completely changed into a work before printing, thus it can greatly
reduced the production time of printing machine and reduce the
consumption of papers, ink, rag, car washing water, human labor
power and electricity consumption. What's more, it can improve the
stability of the special color.
Characters:
1) Four inks may be proofed simultaneously for comparison
2) Excellent repeatability.
3) Automatic ink distributing.
4) Complete inking/proofing/cleaning cycle only 3-5 minutes.
5) Multiple proofs easily obtained using any substrate.
6) Reduces press down-time.
7) Repeatable proofing when the proofer equipped with ink injector.
8) Can print on different materials, including normal paper, coated
paper, tinned plate, matte paper, gray paperboard as well as film.
9) Safe and simple operation.
10) Easy cleaning and maintenance.
Specifications:
| Input Voltage | 220v, 50/60Hz; |
| Power | 250w |
| Ink Distributing Method | Automatic ink distributing with adjustable distributing time |
| Printing Pressure | The printing pressure can be precisely adjusted according to the
thickness of the substrate from outside |
| Ink Distributing and Printing Speed | The ink distributing and printing speed can be adjusted according
to the properties of printing ink and substrate |
| Dimension | 525*430*280mm |
| Total Width of the Printing Roller | 225mm(the maximum color spreading area is 225*210mm) |
| Net Weight | 75kg |
| Application | printing industry, printing ink industry, paper making industry,
training centers and R&D centers. |
| Applicable Printing Inks | the normal inks (non-water-based) or UV curing inks
(non-water-based) for surface offset printing and typographic brand
printing |
RFQ:
Why choose us?
1. Considerate Service Different countries plugs, manually change
the-voltage from 110V to 220V, insurance indicator.
2. Excellent after sale service:
1 YEAR warranty. If you have any problems during testing process,
we promise we will give you a reply with 24 hours and solution
provide within 3 working days. What you need to do is to send us
the controller.
3. Good Packaging:
Covered with air bubble film before put the machine into the wooden
case, which not only has good shock absorption, impact resistance,
heat sealing and also has the advantages of nontoxic, odorless,
moisture corrosion, good transparency etc.

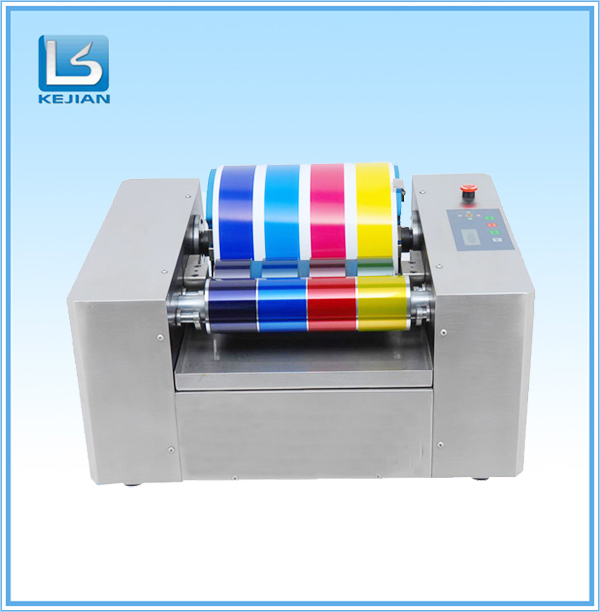

Pictures:
