RT+20℃~70℃ PC Control uv Testing Equipment With Life Time 1600
Hours
Corresponding standard:
ASTM D4329, D499, D4587, D5208, G154, G53; ISO 4892-3, ISO 11507;
EN534; prEN 1062-4, BS 2782; JIS D0205; SAE J2020
Product Applications:
UV accelerated weathering test chamber simulates damaging effects
of long term outdoor exposure of sunlight, heat, moisture on
materials and coatings. It exposes specimen to varying conditions
of weathering- ultraviolet radiation, moisture and heat to test the
performance and improve the quality.
UV test profile :
Technical Parameters:
| Model | KJ-9029 |
| Test chamber size(L×W×H)mm | 1170×450×500(mm) |
| Outside dimension(L×W×H)mm | 1350×540×1480(mm) |
| Chamber materials | 304# stainless steel |
| Temperature range | RT+20℃~70℃ |
| Temperature uniformity: | ±1℃ |
| Temperature fluctuation: | ±0.5℃ |
| Temperature control | PID SSR control |
| Humidity range | ≥90%RH |
| Controller | TEMI 880 programmable controller, touch screen, LCD display |
| Control mode | Balance temperature humidity control (BTHC) |
| Communication function | Be able to control the machine via computer using TEMI control
software through RS-232 port on the machine |
| Test cycle setting | Illumination, condensation and water spray test cycle is
programmable |
| Distance from specimen to lamp | 50±3mm (adjustable) |
| Center distance between the lamps | 70mm |
| Lamp power & length | 40W/Piece, 1200mm/Piece |
| Lamps amount | 8 pieces of UVA-340 or UVB-313 imported lamps |
| Lifetime of lamp | 1600Hours |
| Irradiance | 1.0W/m2, adjustable directly on TEMI 880 touch screen controller |
| Wavelength of ultraviolet light | UVA is 315-400nm and UVB 280-315nm |
| Effective irradiation area | 900mm×210mm |
| Irradiation black panel temperature | 50℃~70℃ |
| Standard specimen size | 75×290mm/24 pieces |
| Water depth for water channel | 25mm, automatically control |
| Water consumption | 8L/day, tap water or distilled water |
| Testing time | 0～999H, adjustable |
| Power | 1 phase, 220V/50Hz /±10% 5KW |
| Protection | Overload short circuit protection, over temperature protection,
water lacking protection |
Standard accessories:
1. One copy of English user guide.
2. One CD of controller software and operation instruction video.
Kindly note:
1. Please advise whether 8 UVA or 8 UVB lamps are needed when
order.
2. UVA-340 lamps can well simulate the natural outdoor exposure.
UVB-313 lamps are able to do accelerated test more quickly via
stronger irradiation.
Illustration on control systems:
1. English control panel

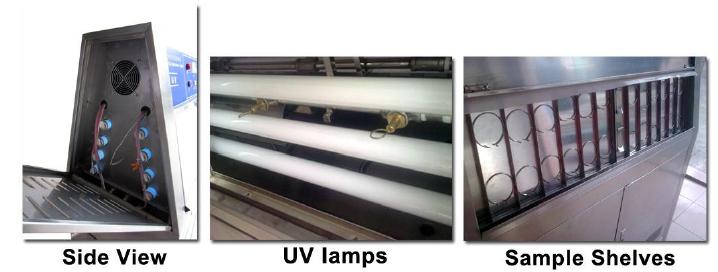

2. Parts View
3. Chamber Inside
4. TEMI880 LCD touch screen controller
5. Control interface on computer
Safety protection:
1. Ground fault protection
2. Power overload, short circuit breaker
3. Control circuit overload, short circuit fuse
4. Water lacking protection
5. Over-temperature protection
Usage requirements:
1. Environmental temperature: 5℃~+32℃
2. Environmental humidity: ≤85% 3. Power requirement:
AC220(±10%)V/50HZ
4. Capacity: 5KW
5. Fine grounding
Warranty & service assurance
1. Warranty Coverage
The warranty period for the machine is one year under normal use
since the delivery date.
2. After-sales service
①The free lifetime technical support will be provided.
②Any problems or malfunction of the machine should be emailed to
jessica@kejian-tech.com in time for the right solutions by our
maintenance engineers or technicians.
3. The following situations will not covered by the warranty
①The failure or damage caused due to abnormal operation and
man-made or natural disasters.
②The failure or damage caused due to improperly operation.
③The failure or damage caused due to improper power supply.
④The failure or damage caused due to disassemble or modification of
any part (such as machine part, line, etc) without our consent.
⑤Consumable materials like UV lamps are not included in the
warranty.
How to buy
● Production of the machines will begin after receiving 50% down
payment. (If any specific document is needed, e.g. insurance,
please advise when order.)
● The balance 50% payment will be required after production is
finished.
● After receiving the balance payment, the goods will be packed and
sent to customs warehouse for customs clearance which will take
about 5 days until ship departure.
● Ship departure and estimated arrival date will be updated.
