Automatic Cropping And Manual Operation Melting Equipment Plastic
Melt Flow Index Tester WIith 12 Months Warranty
Introduction:
Melt Index Tester meets the standards GB/ T3682-2000, the main
parameters of Melt Index Tester also meet the standard requirements
of ISO1133-97, ASTM1238, JIS, ect.. It is used in polyethylene,
polypropylene, polystyrene, ABS, polyethylene amide, fiber resin,
acrylic, POM, fluorine plastic, polycarbonate, and other plastic
materials, to measure MFR and MVR. It is widely applied to various
industries like plastic production, plastic products,
petrochemical, and related institutions, research institutes and
inspection departments.
Characteristics:
High precision and Chinese-English color control, special custom
membrane keyboard, incomparable advantages in the control precision
and service life,
Integrated control of manual and automatic material-cutting,
accurate to 0.1s, free set of cutting time and frequency..
Built-in mini printer can print testing data.
Dual temperature-control system uses dual imported heating coil,
dual imported PT100 platinum resistance sensor, which can control
the temperature independently in the upper and lower sections, to
improve the degree of testing accuracy and temperature stability.
Increased displacement sensor can test MVR( volume method) with an
accuracy of 0.001mm.
It can connect an computer via USB, and set the testing conditions
in the computer software, to print and store data.
Testing Methods:
mass method, volume method( MFR, MVR)
Display:
Chinese and English color LCD
The main technical parameters:
| Design standard | ASTM-D1238,D3368,JIS-K7210 |
| Temperature range | Normal tempreture~400°C,PID control,Accuracy±0.1°C(including the
Over temperature protection) |
| Weights | 1200g, 2160g,3800g,5000g,10000g |
| Automatic cropping device | Automatic cropping and manual operation(optional) |
| Time setting | 0.1~999.9min Arbitrarily setting |
| Cylinder | Diameter9.5504±0.0076mm |
| Plunger | Diameter9.4742±0.0076mm |
| Thin hole pattern | External diameter:9.5±0.02mm ,bore diameter2.0955±0.0051mm,
lenth8.00±0.02mm |
| Machine Size | (L×W×H)40×51×60cm |
| Weight | 42kg(not including the weights) |
| Power | AC220V,5A |
| Accessory | Mercurial thermometer150°C,200°C,250°C,300°C(optional),one cleaning
brush, one scraper, one guaid material stick, one observation
mirror, one feedstock funnel, three frictioning steel disc, two
thin hole pattern determine gauge |
Melt Flow Indexer is based on designed and manufactured according
to latest national and international standards. Its advantage to
combined various machine of domestic and international models:
compact structure, beautiful appearance Based on designed and
manufactured according to latest national and international
standards.
Plastic Melt Flow Index Machine Price Plastic Point load Tester
Characteristic:
1.Using advanced electronic measurement technology, liquid crystal
display test results, the micro printer output results and
calculating the quality of the melt flow rate (MFR) or melt volume
flow rate (MVR) (note: single determination value and many times
the average of the cutting material).
2.Tester compact structure, beautiful, the control system can real
time measurement and display temperature numerical, has the upper
limit temperature protection, constant temperature sound reminders,
response time tip etc. Function. The use of advanced PID control
technology and high speed and high resolution sampling circuit,
make the machine in constant temperature is the following
characteristics:
A: heating speed, the dinky overshoot.
B: constant temperature and high precision.
C: in the packing after, can quickly restored constant temperature
condition.
Description:
KJ-3092 melt flow rate testing instrument can be used for ABS,
polystyrene, polyethylene, polypropylene, polyamide, fiber resin,
acrylate, POM, fluorine plastic, polycarbonate and other plastic
materials, the melt flow rate (MFR) or the melt volume flow rate
(MVR) to be determined.
Standard:
GB/T3682-2000,ISO1133-97, ASTM1238
Technical parameter:
| Model | KJ-3092 |
| Barrel parameters | Inner hole 9.55±0.025mm |
| Pistons parameters | Piston head: 9.475±0.015mm |
| Piston length | H=6.35±0.1mm |
| Paramters | Extrusion hole 1=2.095±0.005mm |
| Temperature parameter | With intelligent temperature control instrument, with four pairs of
significant temperature setting control, PID parameters can be
automatically set, precision up to ± 0.1 degree centigrade |
| Temperature range | 80degree centigrade~400degree centigrade |
| Temperature accuracy | ±0.2 degree centigrade |
| Display resolution | 0.1degree centigrade |
| Maximum comsuption | < 600W |
| Temperature recovery time | less 4 min. |
| Weight parameters are as follows: |
| Weight accuracy | ±0.5% |
| Basic configuration | A 0.325kg (including binder bar) |
| B 1.2㎏, |
| C 2.16㎏ |
| D 3.8㎏ |
| E 5.0㎏ |
| F 10kg |
| G 12.5㎏ |
| H 21.6kg |
| Position detection |
| Loop distance from up and down | 30mm |
| Control precision | ± 0.1mm |
| Test flow control |
| Times of cutting the material | 0~10 times |
| Material cutting interval | 0~999s(set reference Table 2) |
| Control flow reaches the set temperature without volatility |
| Barrel temperature time | 15 min. |
| Material be installed | 1 min. |
| Material sample temperature recovery time | 4 min. |
| When binder set | 1min |
RFQ:
Why choose us?
1. Considerate Service Different countries plugs, manually change
the-voltage from 110V to 220V, insurance indicator.
2. Excellent after sale service:
1 YEAR warranty. If you have any problems during testing process,
we promise we will give you a reply with 24 hours and solution
provide within 3 working days. What you need to do is to send us
the controller.
3. Good Packaging:
Covered with air bubble film before put the machine into the wooden
case, which not only has good shock absorption, impact resistance,
heat sealing and also has the advantages of nontoxic, odorless,
moisture corrosion, good transparency etc.

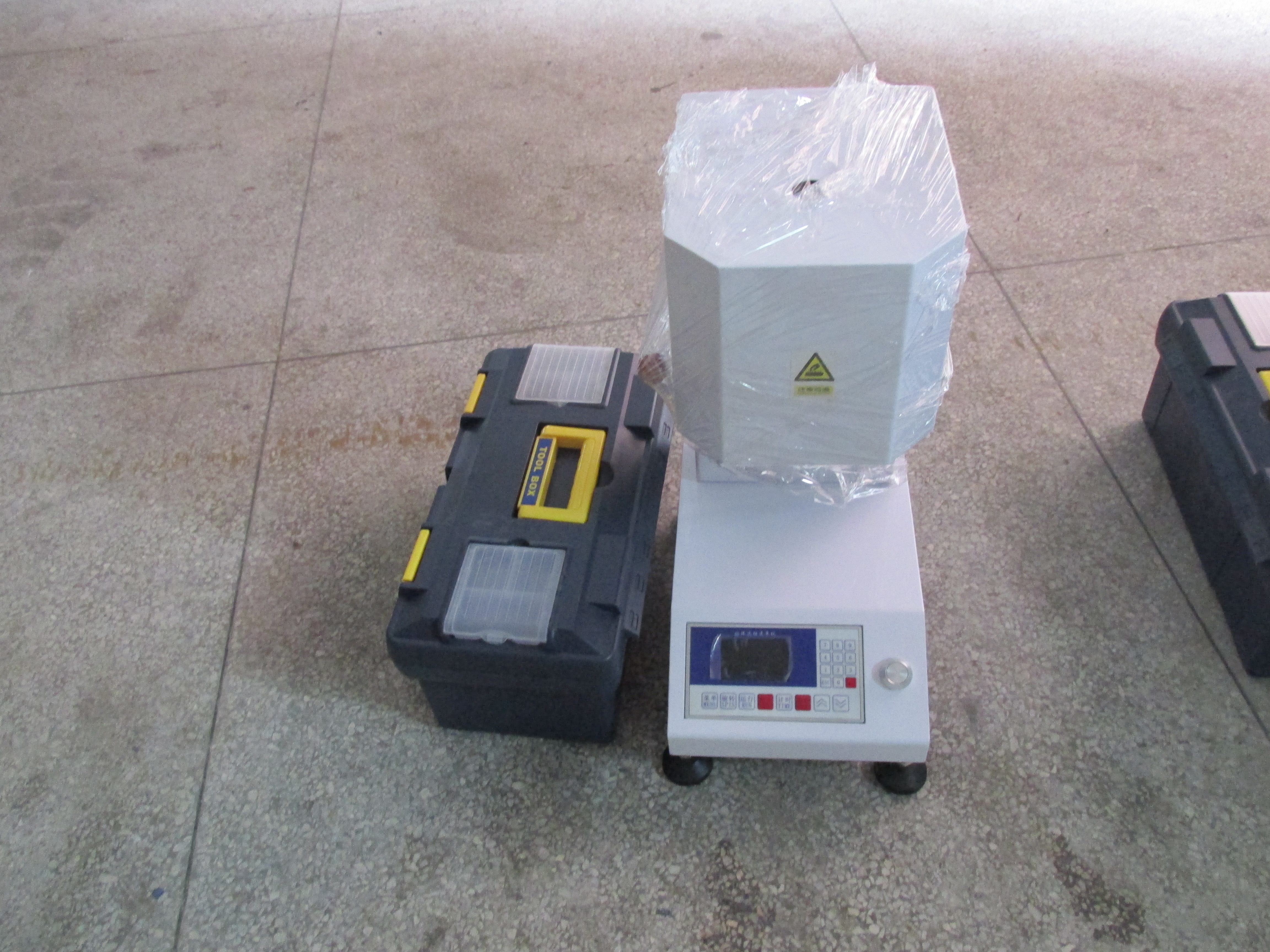

Pictures:
