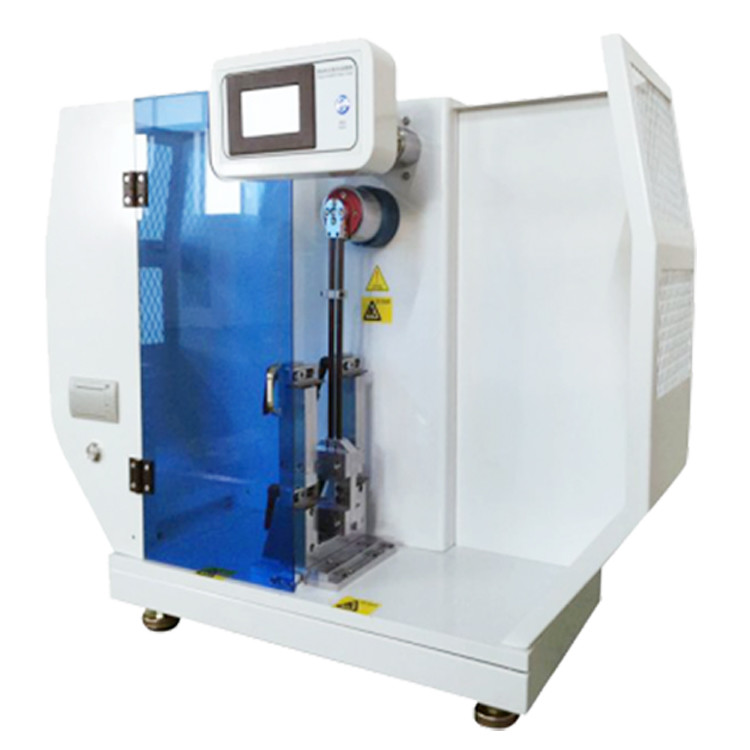

    560* 300* 840mm 150 Degree Electronic LCD Touch Izod Impact Testing Machine for Plastic

    Ask Lasest Price
    Brand Name : KEJIAN
    Model Number : KJ-3090
    Certification : ISO,CE and etc
    Price : Negotiate
    Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
    Supply Ability : 200 sets per month
    Delivery Time : In stock,3-7 working days after order confirmed
    • Product Details
    • Company Profile

    560* 300* 840mm 150 Degree Electronic LCD Touch Izod Impact Testing Machine for Plastic

    560* 300* 840mm 150 Degree Electronic LCD Touch Izod Impact Testing Machine for Plastic

    Uses:


    This machine is used for testing the impact strength of engineering plastic, FRP, ceramic, cast stone, plastic electrical appliance, insulation material, plastic pipe etc.

    The pendulum arm used in the instrument is a kind of new material stronger than steel and lighter than aluminum (patent pending).

    Characteristics:


    English characters LCD shows the results, the storage of test results, and has the energy loss to be automatic correction function. Simple structure, convenient operation, data accurate and reliable.


    Designing standard:


    GB/T1843, ISO179---92, ISO180, GB/T21189, GB/T2611, JB/T8761

    Specification

    Mode:KJ-XB5.5KJ-XB22
    Impact speed:3.5m/s
    Pendulum energy:1.0J,2.75J,5.5 J11J 22J
    Pendulum angle:150degree
    Impact center distance:335mm
    Accuracy:±0.1%
    Resolution:1%
    Distance between impact blade and clamp mouth22.0mm±0.2mm
    Blade fillet radiusR=0.8mm±0.2mm
    Energy loss:1.0J—2%;2.75J—1%;5.5J—0.5%11J,22J—0.5%
    Specimen type:Best type of specimen is 1 type.
    Need the space:Front and back 0.4m,left and right 1.5m,head 1.5m
    Power:(220-15%~220+10%)VAC 50HZ 0.1KW

    Digital izod impact testing equipment standard configuration


    ItemNameQuantityUnitRemark
    HostImpact testing machine1set
    Attached1J ballistic pendulum1set
    2.75J impact weight1couple
    5.5J impact weight1couple
    model1piece
    wrenth1set
