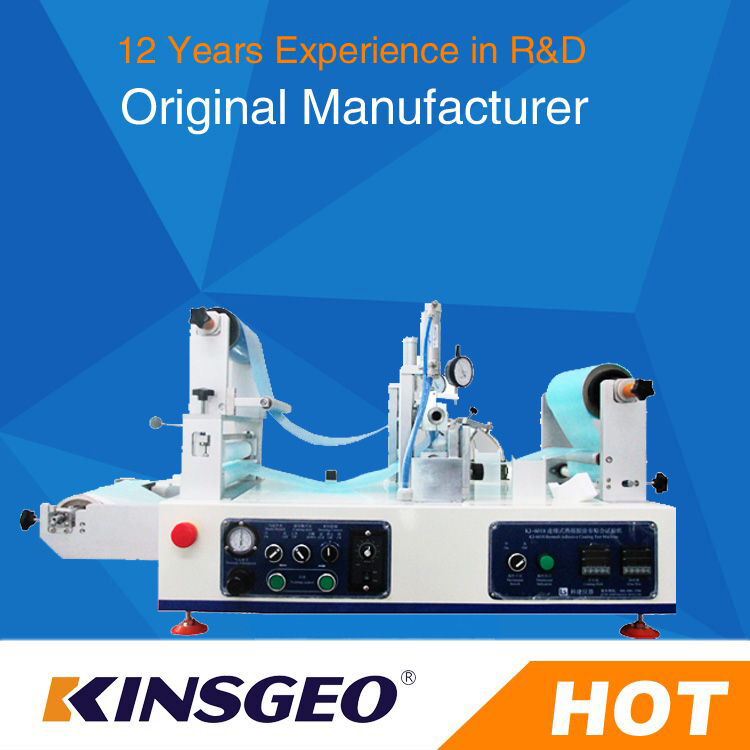

Round Roller Extrusion Hot melt Coating Machine Easy Install with size 1200×620×550mm

Description

The precision laboratory benchtop Hot Melt Coater is capable of producing coated samples or small production of hot melt adhesives, and then laminating to a variety of foils, films, and papers. Lab scale simulations of production processes can be easily set up and studied.

Uses

This machine is designed for checking the performance of water based adhesive material or similar material on lab or quality department.Trial coating tests are conducted to demonstrate the ability meet any special requirements of our customers.

Feature

1. Self contained brake unwinds for adhesive carrier and facestock

2. Requires a 110V/20A circuit and compressed air source

3. Pivot control on adhesive carrier and facestock to control web alignment

4. Laminating speed and pressure are controllable

5. Maximum operating temperature 482℉(250℃)

6. Clean up is easily accomplished through quick, uncomplicated disassembly

7. Generates sample laminates as long as needed

8. Precision ground coating bars

9. Both coating bars and the back reservoir are heated independently

10. Width of coating can be controlled by teflon insert side dams

11. Durable aluminum and steel construction means a long machine life with consistent performance

12. Variable speed controller can be adjusted

13. Non rotating bars is separated from the reservoir, with PT-100 high-precision PID temperature control mode
14.Using a large diameter high precise micrometer to adjust the coating gap to control coating thickness, and show the coating thickness through grating scale. The resolution is 0.05mm, that is the minimum coating thickness is 0.05mm.

15.The maximum coating width is 280mm. Width of coating can be controlled by teflon insert side dams. The precision hot melt coator is capable of producing coated samples, and small production. it can coat for a unlimited length tape, and automatic winding.

16.Reversible speed controller can be adjusted , the best coating speed: 4.5m / min

17.The coated liner bar can be adjusted to control the roll tension

18.The heating bar, the rubber roller and reservoir can be quickly disassembled separated from the host, it is perfect to clean adhesive residue.

Hot melt Coating Machine ​Specification

Company information:

Established in 2003, Dongguan Kejian Instrument Co., Ltd is a high-tech enterprise which professionally research, develop and produce precise testing instruments and provide a full set of testing solution.

Attend the fair:

Our company will attend the world's exhibitions every year and have dealers all over the world.The products sell well in Asia, Europe and America.Welcome to our booth.

Certifications and letters patent

We have CE and IOS certificates. If you need other special certificates, we can also help you

Packing &Delivery

Packaging Details:Disposable Plastic Apron PE Film Making Machine uses international standard package, big wooden cases

Delivery Time: 10-20 days after received deposit

Our services

1. Warranty time: All machines are guaranteed for one year free that we provide spare components except the wrong operation or damaged by people on purpose.

2.Teaching services: Our engineers will teach your staff to operate the machine during the period of installation and commissioning, and they will not leave until your staff can operate it properly and normally when it necessary.

3.Certificate services: Complying with our clients' request, we can provide related certificates to clients freely

4.Maintenance services: If you have any questions or any malfunction happened,we will reply you within 48 hours .
