70kg Automatic Vertical Tensile Electronic Peel Adhesion Test
Equipment With Single Column
Design standard:
ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7
Uses:
This machine is designed for quick and reliable tensile,
compression, bending, shear, peel, loop tack and fatigue cycling on
metals, tape, composites, alloys, rigid plastics and films,
elastomers, textiles, paper, board and finished products.
Character:
1 That Using the computer as the main control mathine plus the
special testing software of our campany can conduct all of testing
parameter, work state, collecting data&analysis, result display
and printing output.
2 Have steady performace, high accuracy, powerful software function
and easy operation.
3 Use the USA high-precision load cell.
Specifications:
| Capacity choice | 1,2,5,10,20,50,100,200,500kg optional |
| Stroke | 650mm(excluding clamp) |
| Range of speed | 50~500mm/min |
| Effective testing space | 1200mmMAX |
| Accuracy | ±0.5% |
| Operation method | Windows operation |
| Motor | AC motor |
| Accessories | computer, printer, system operation manual |
| Optional accessories | stretcher, air clamp |
| Resolution | 1/150,000 |
| Weight | 70kg |
| Dimention | (W×D×H)58×58×125cm |
| Power | AC220V, 50/60Hz |
Safety Device:
Stroke protection:Upper and lower protection, prevent over preset
Force protection:system setting
Emergency stop device:Handling emergencies.
Software functions:
1. Use windows working platform, set all parameter with dialog
forms and operate easy;
2. Using a single screen operation, do not need to change the
screen;
3. Have simplified Chinese, traditional Chinese and English three
languages,switch conveniently;
4. Plan test sheet mode freely;
5. Test data can be directly appeared in the screen;
6. Compare multiple curve data through translation or contrast
ways;
7.With many units of measurement, the metric system and british
system can switch;
8.Have automatic calibration function;
9.Have user-defined test method function
10.Have test data arithmetic analysis function
11. Have the function of automatic magnification, to achieve the
most appropriate size of graphics;
Automatic Vertical Tensile Electronic Peel Adhesion Test Equipment
With Single Column

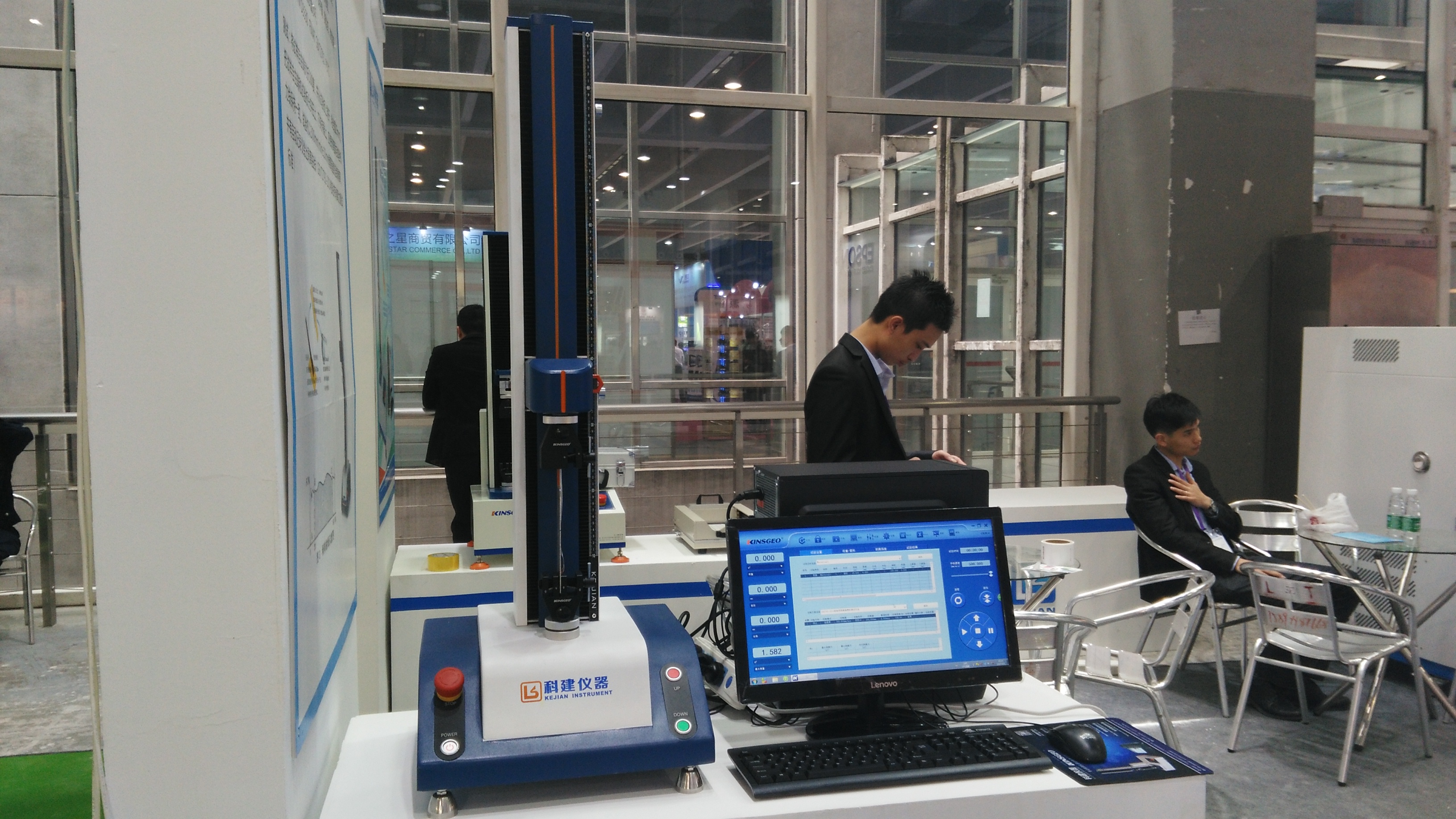

Exhibition photos
Exhibition photos
